SPT836MBDC1
The Spectron SPT836MBDC1 is a miniature B5 duplexer designed for applications in LTE-A,5G NR,customer premise equipment,and mobile communication devices.
Frequency Band:
Band 5

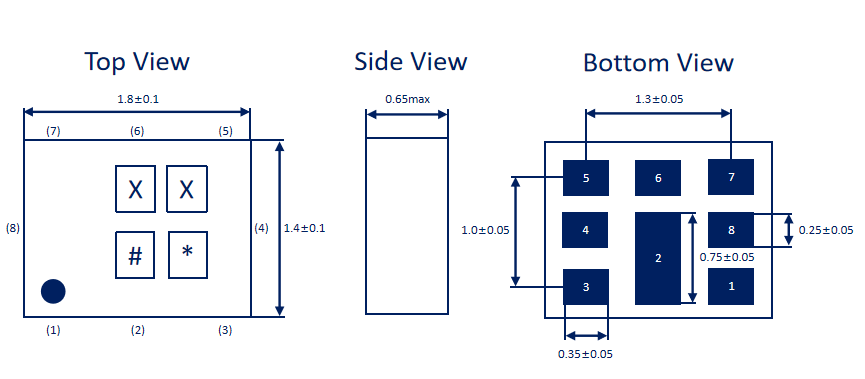

Size:
1.8mm*1.4mm
Function:
Duplexer
Center Frequency:
Tx:836.5MHz/Rx:881.5MHz
Bandwidth:
25MHz
Packaging:
CSP
