SPT1G73ADC1
The Spectron SPT1G73ADC1 is a miniature B4 duplexer designed for applications in LTE-A,5G NR,customer premise equipment,and mobile communication devices.
Frequency Band:
Band 4

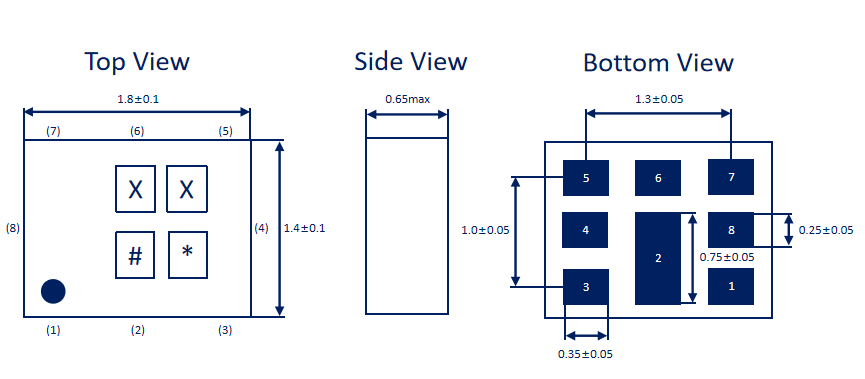

Size:
1.8mm*1.4mm
Function:
Duplexer
Center Frequency:
Tx:1735.5MHz/Rx:2135.5MHz
Bandwidth:
45MHz
Packaging:
CSP
