SPT1G95ADC1
SPT1G95ADC1
The Spectron SPT1G95ADC1 is a miniature B1 duplexer designed for applications in LTE-A,CAT1,5G NR,customer premise equipment,and mobile communication devices.
Frequency Band:
Band 1
Size:
1.8mm*1.4mm
Function:
Duplexer
Center Frequency:
TX:1950MHz/Rx:2140MHz
Bandwidth:
60MHz
Packaging:
CSP
Add To Quote
Configurable Options
ParameterOption Code
Part Number
Container
Quantity
Quantity / Special Request

Please specify the quantity you require below.

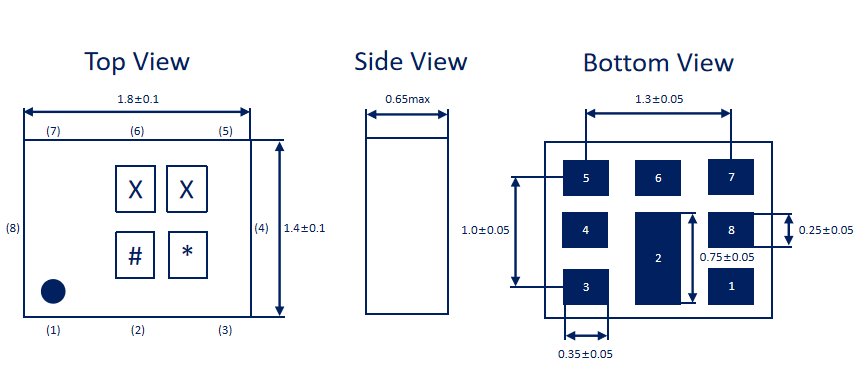

PACKAGE DRAWING

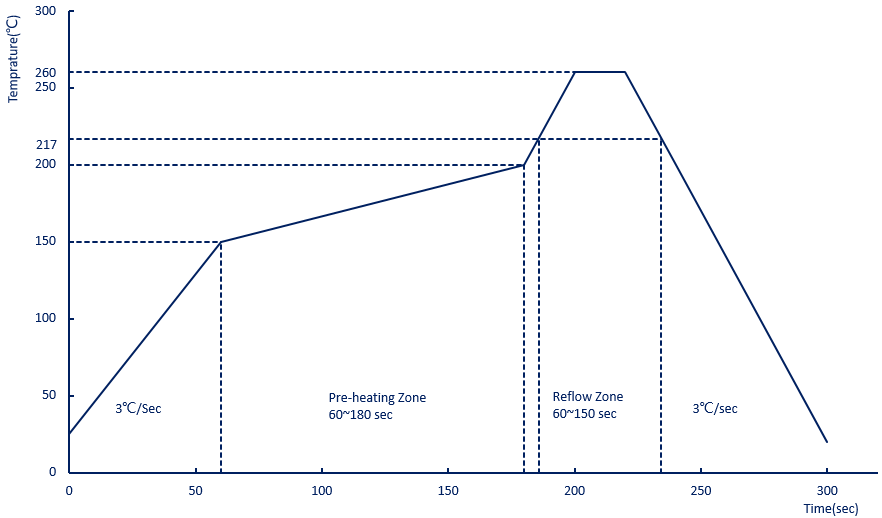

SOLDERING PROFILE

SOLDERING PROFILE.png

ORDERING INFORMATION
TAPE & REEL SPECIFICATION
HANDLING & STORAGE
COMPLIANCE
DOCUMENTS
