SPT2140AA
SPT2140AA
The Spectron SPT2140AA is Band1 duplexer designed for applications in small cell and femtocell systems.
Frequency Band:
Band 1
Size:
2.5mm*2.0mm
Function:
Duplexer
Center Frequency:
TX:2140MHz/Rx:1950MHz
Bandwidth:
60MHz
Packaging:
CSP
Add To Quote
Configurable Options
ParameterOption Code
Part Number
Container
Quantity
Quantity / Special Request

Please specify the quantity you require below.

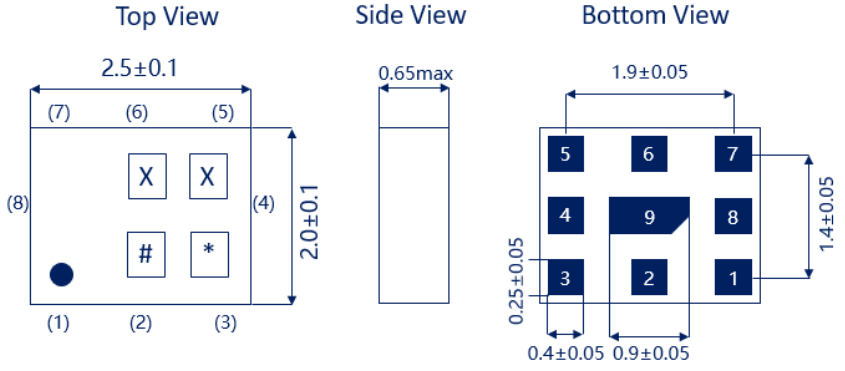

PACKAGE DRAWING

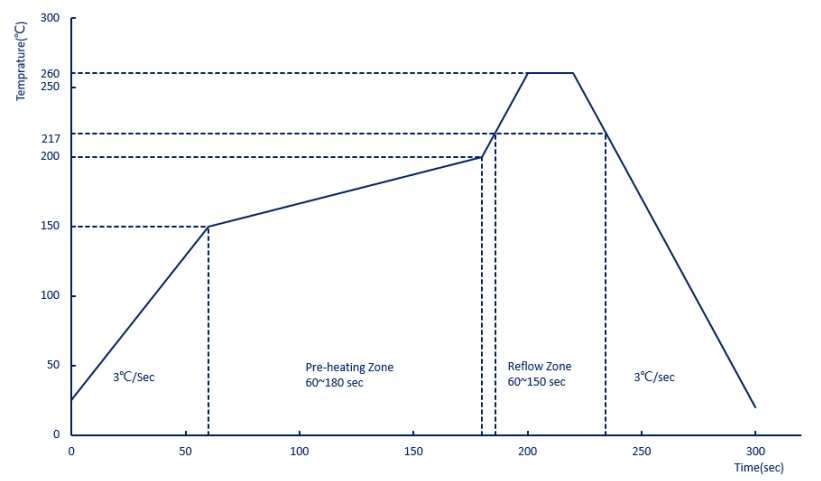

SOLDERING PROFILE


ORDERING INFORMATION
TAPE & REEL SPECIFICATION
HANDLING & STORAGE
COMPLIANCE
DOCUMENTS
